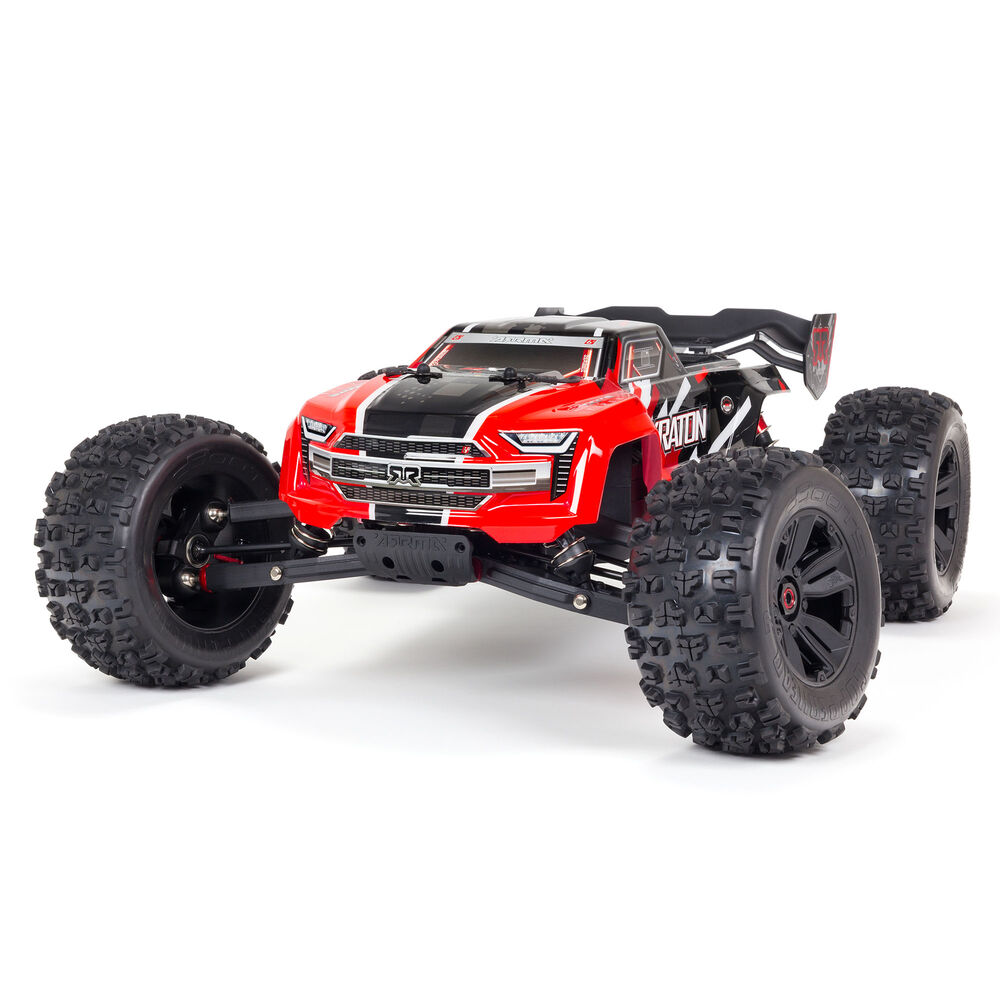

VehiclesArrma Kraton 6S BLX V5
Arrma Kraton 6S BLX V5
1/8 scale · ARA8608V5
- Top speed
- 50mphcalculated
- Final drive
- 17.92:1
- Tire
- 169mm
Open in Top Speedverified
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 12TStock | Stock |
| Spur | 50TStock | Stock |
| Transmission & axle | 4.30:1Stock | Stock |
| Spur ÷ pinion | 4.167:1Calculated | Calculated |
| Final drive | 17.92:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 169mmStock | Stock |
| Rollout | 29.6mm per motor turnCalculated | Calculated |
| Power | ||
| Motor | 2050KVStock | Stock |
| Battery | Up to 6SLiPoStock | Stock |
| Performance | ||
| Theoretical top speed | 50.3mph on 6SCalculated | Calculated |
| Motor speed | 45,510rpm, no loadCalculated | Calculated |
| Vehicle | ||
| Part number | ARA8608V5 | |
| Scale | 1/8 | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. The top speed is kinematic: an ideal no-load RPM with no slip and no loss under load, so a real car is slower.
