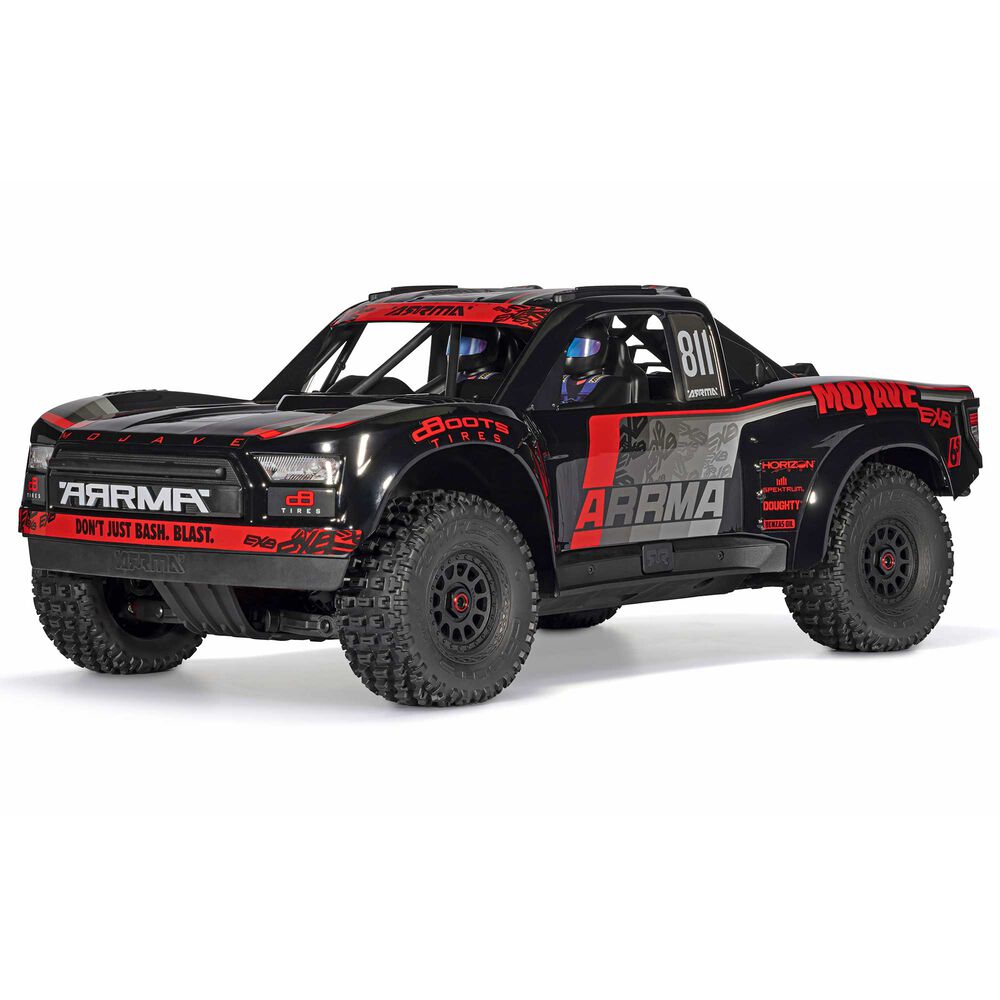

VehiclesArrma Mojave 6S BLX EXB
Arrma Mojave 6S BLX EXB
1/7 scale · ARA7704V3
- Top speed
- 62mphcalculated
- Final drive
- 11.94:1
- Tire
- 139mm
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 18TStock | Stock |
| Spur | 50TStock | Stock |
| Transmission & axle | 4.30:1Stock | Stock |
| Spur ÷ pinion | 2.778:1Calculated | Calculated |
| Final drive | 11.94:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 139mmStock | Stock |
| Rollout | 36.6mm per motor turnCalculated | Calculated |
| Power | ||
| Motor | 2050KVStock | Stock |
| Battery | Up to 6SLiPoStock | Stock |
| Performance | ||
| Theoretical top speed | 62.0mph on 6SCalculated | Calculated |
| Motor speed | 45,510rpm, no loadCalculated | Calculated |
| Advertised top speed | 60mphMaker's claim | Maker's claim |
| Vehicle | ||
| Part number | ARA7704V3 | |
| Scale | 1/7 | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. The top speed is kinematic: an ideal no-load RPM with no slip and no loss under load, so a real car is slower. The maker advertises 60 mph, which is their own claim on their own conditions.
How these numbers were settled
50/18 x 4.3 = 11.944 against the printed 11.94. Tire diameter is confirmed twice over: Arrma's dBoots Fortress 2.4/3.3 page prints Outer Diameter 5.47 in (139mm), and the vehicle spec sheet's own published Roll Out of 36.57mm satisfies pi x 139mm / 11.94 = 36.57mm.
Sources
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
