VehiclesArrma Senton 6S BLX

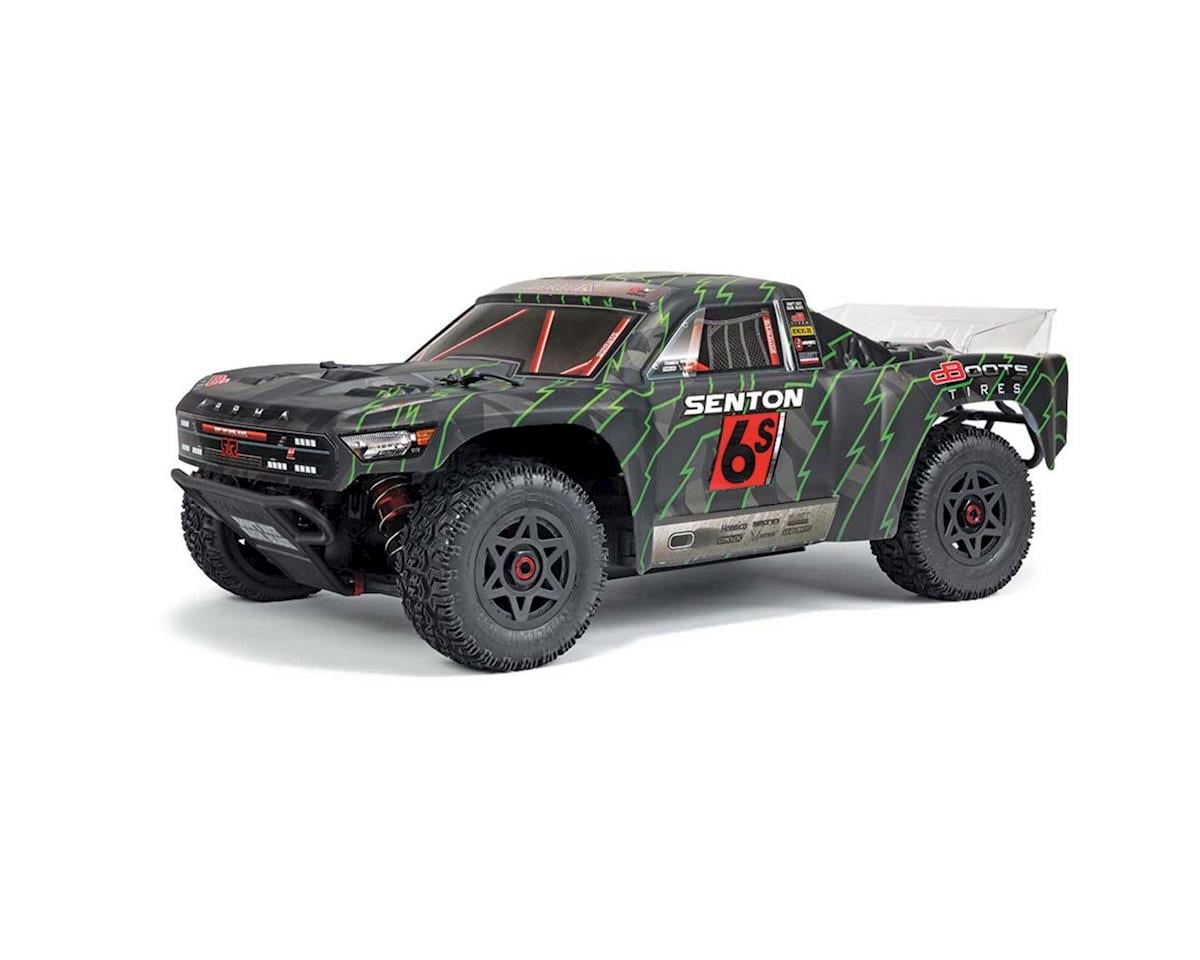

Arrma Senton 6S BLX
1/10 scale · AR102654
- Top speed
- 49mphcalculated
- Final drive
- 11.79:1
- Tire
- 108mm
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 12TStock | Stock |
| Spur | Not published | |
| Transmission & axle | Not published | |
| Final drive | 11.79:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 108mmStock | Stock |
| Rollout | 28.8mm per motor turnCalculated | Calculated |
| Power | ||
| Motor | 2050KVStock | Stock |
| Battery | Up to 6SLiPoStock | Stock |
| Performance | ||
| Theoretical top speed | 48.8mph on 6SCalculated | Calculated |
| Motor speed | 45,510rpm, no loadCalculated | Calculated |
| Vehicle | ||
| Part number | AR102654 | |
| Scale | 1/10 | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not published means it exists but no source we could find prints it. The top speed is kinematic: an ideal no-load RPM with no slip and no loss under load, so a real car is slower.
How these numbers were settled
A different vehicle from the Senton 3S BLX V3: same 1/10 short-course-truck body style, but a heavier-duty chassis rated for 4-6S LiPo (or 2x 2-3S packs via dual XT90), a 2050kV Spektrum Firma motor, a BLX185 150A ESC and larger dBoots Sidewinder 2 tires (108mm).
- The pinion (12T), final drive (11.79) and tire diameter (4.2in/108mm) are stated on the Adventure Hobbies retailer listing, which mirrors Arrma's own spec sheet format.
- Neither the spur nor Arrma's separate 'Internal Gear Ratio' could be found in any source, so both are left blank rather than back-solved or guessed, and the pinion, spur and ratio cross-check could not be run.
- KV, cell count and scale are corroborated across AMain, Adventure Hobbies and Shadow Hobbies listings.
Sources
- ar102654-senton-6s-1-10-blxadventurehobbiesandtoys.com (opens in a new tab)
- arrma-ar102654-senton-6s-1-…shadowhobbies.com (opens in a new tab)
- arrma-senton-6s-blxrcscrapyard.net (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
