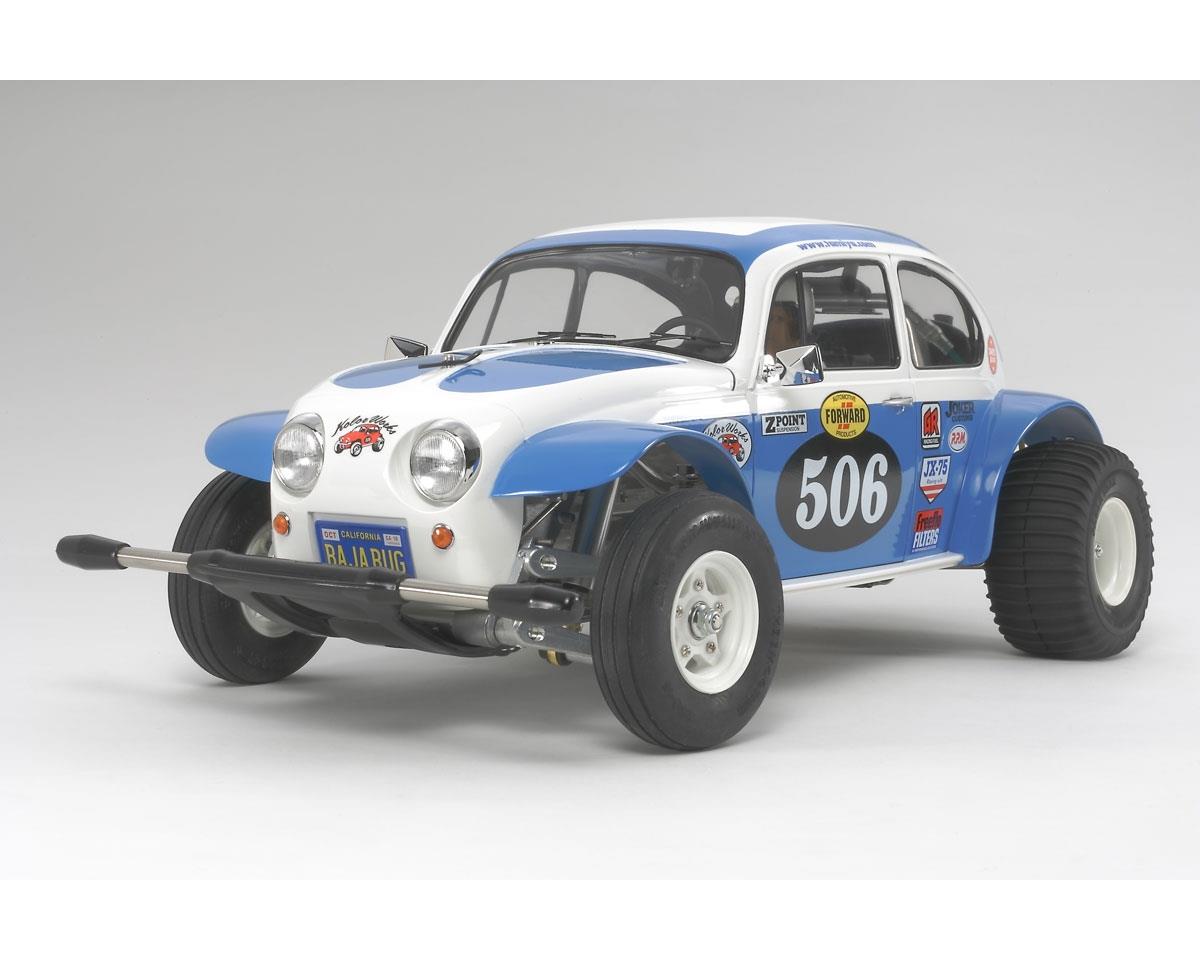

VehiclesTamiya Sand Scorcher (2010)
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | Not published | |
| Spur | Not published | |
| Transmission & axle | Not published | |
| Final drive | 6.50:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 82mmStock | Stock |
| Rollout | 39.6mm per motor turnCalculated | Calculated |
| Power | ||
| Motor | Not applicable | |
| Battery | Not applicable | |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Vehicle | ||
| Part number | 58452 | |
| Scale | 1/10 | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.
How these numbers were settled
Two kit ratios.
- Tamiya prints 'Gear Ratio: 6.5:1 or 9.3:1' on the English page and the same pair on the Japanese page.
- The first-listed 6.5:1 is used here; set 9.3:1 in the calculator for the low-gear build.
- No tooth counts are published, so the pinion, spur and transmission and axle ratio are left blank as unknown, not as not applicable.
- Brushed Type 540 motor included, rear-wheel drive.
- The tire diameter is the driven rear pair, 41/82mm; the front is 21/73mm.
- Unassembled kit with no battery; the motor is brushed, so KV and cell count do not apply.
Sources
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
