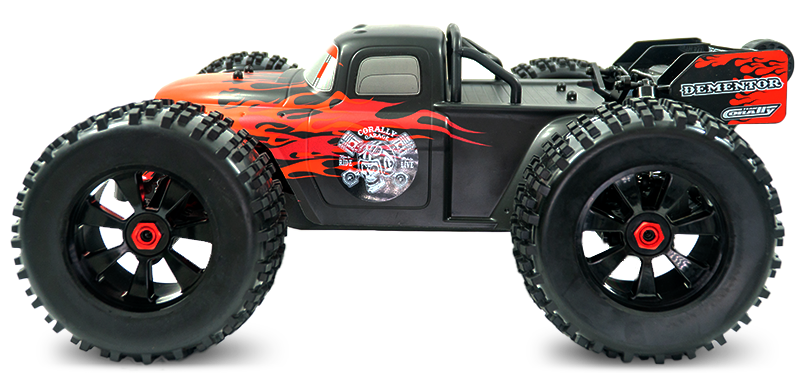

VehiclesTeam Corally Dementor XP 6S (2021)
Team Corally Dementor XP 6S (2021)
1/8 scale
- Top speed
- 68mphcalculated
- Final drive
- 13.23:1
- Tire
- 170mm
Open in Top Speedverified
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | Not published | |
| Spur | Not published | |
| Transmission & axle | Not published | |
| Final drive | 13.23:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 170mmStock | Stock |
| Rollout | 40.4mm per motor turnCalculated | Calculated |
| Power | ||
| Motor | 2050KVStock | Stock |
| Battery | Up to 6SLiPoStock | Stock |
| Performance | ||
| Theoretical top speed | 68.5mph on 6SCalculated | Calculated |
| Motor speed | 45,510rpm, no loadCalculated | Calculated |
| Advertised top speed | 62mphMaker's claim | Maker's claim |
| Vehicle | ||
| Scale | 1/8 | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not published means it exists but no source we could find prints it. The top speed is kinematic: an ideal no-load RPM with no slip and no loss under load, so a real car is slower. The maker advertises 62 mph, which is their own claim on their own conditions.
How these numbers were settled
Corally publishes 'Gear Ratio (out of the box): 13.23 (MOD.1)' and 'Wheel Size (diameter, width): 170x78.5mm'.
- Kuron 825 2050kV on a 4-6S Torox 185.
- The +100 km/h (+62 mph) claim is 80% of the 77.7 mph this gearing allows at 4.2V/cell, so the total checks out.
- No tooth counts are published, so the pinion and spur are left blank.
- Corally prints a ratio after the spur only on roller pages of other models in the range, and none is given here.
- Corally's earlier Dementor page prints 11.7 for the pre-2021 release; this page covers the 2021 car.
Sources
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
