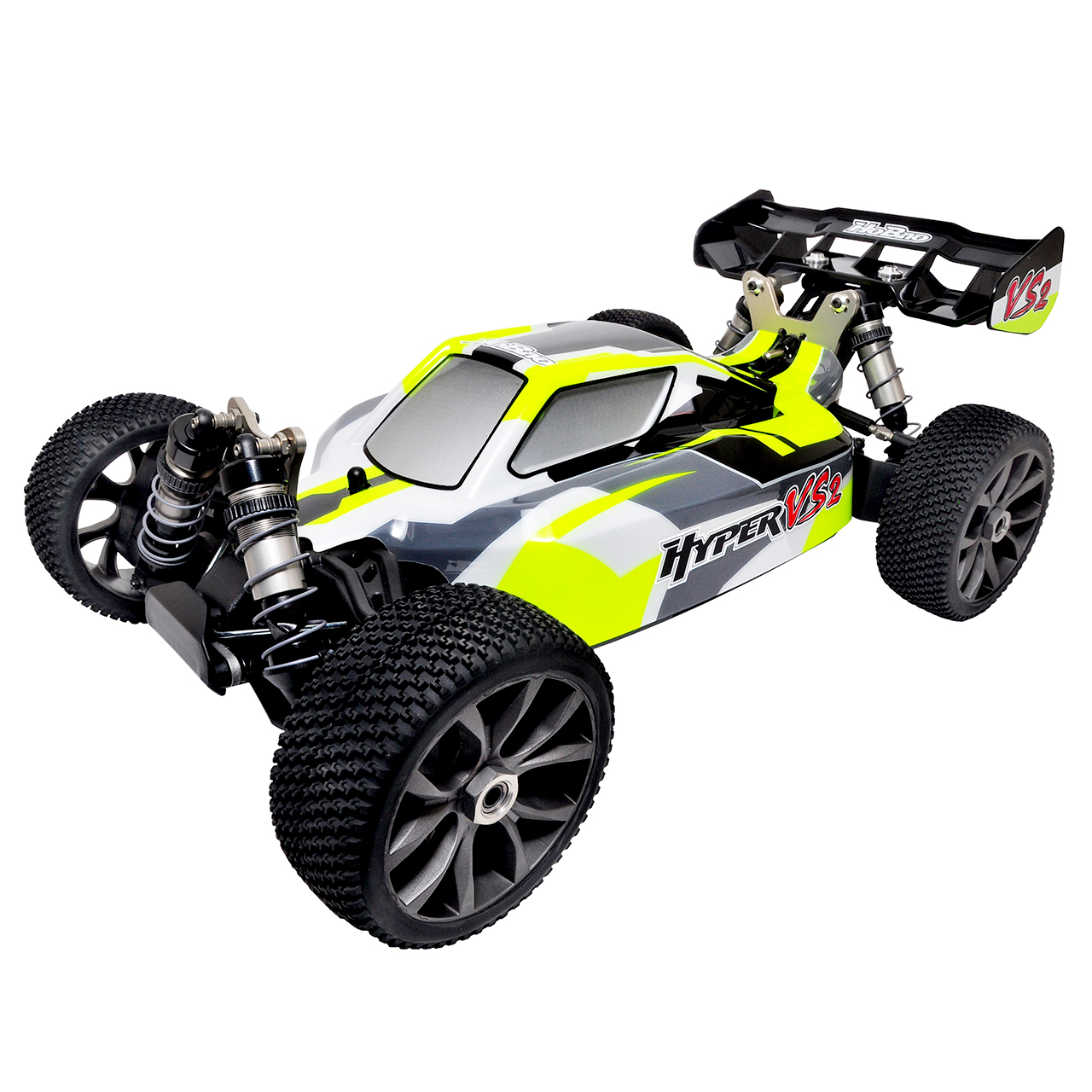

Hobao Hyper VS2E

Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.

How these numbers were settled

Hobao sells no kits: every 1/8 is an ARR roller with tires fitted at the factory, so unlike the competition kits in this catalog its tire diameter is a real missing figure rather than a fact about the product.

• Hobao publishes none.
• Its marketing 3.3in tread figure is 84mm, which matches a 1/8 wheel rather than a 1/8 tire outside diameter of around 120mm, so it is not recorded.
• Sold without ESC, motor or battery.
• Pinion 16T MOD1 (part 89326) and spur 48T MOD1 (85102) are in the parts list; the after-spur figure is the 43T crown against the 13T diff pinion.
• No total is published.
• The 9.93 total is derived from the kit's own 48/16 and 3.31, not published by Hobao.

Sources

• hb-vs2ehobao-usa.com (opens in a new tab)

Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
