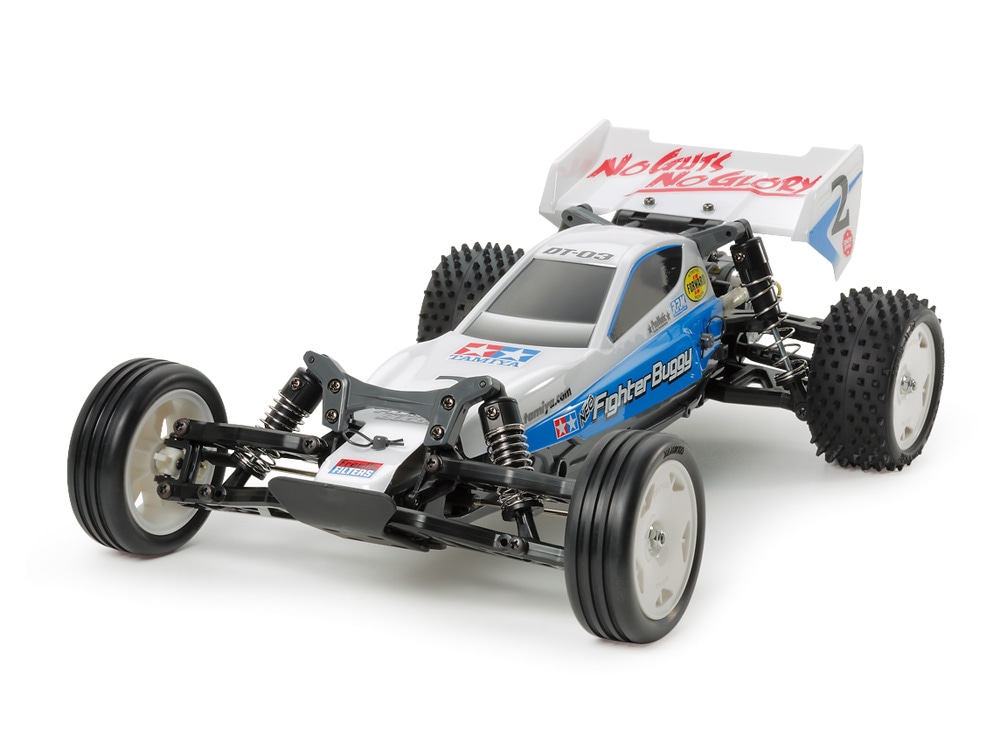

VehiclesTamiya DT-03 Neo Fighter Buggy
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | Not published | |
| Spur | Not published | |
| Transmission & axle | Not published | |
| Final drive | 9.28:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 86mmStock | Stock |
| Rollout | 29.1mm per motor turnCalculated | Calculated |
| Power | ||
| Motor | Not applicable | |
| Battery | Not applicable | |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Vehicle | ||
| Part number | 58587 | |
| Scale | 1/10 | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.
How these numbers were settled
Tamiya publishes 'Gear Ratio = 9.28:1' on both the English and Japanese pages.
- No tooth counts are published, so the pinion, spur and transmission and axle ratio are left blank as unknown, not as not applicable.
- Brushed Type 540 motor included, ESC sold separately.
- The tire diameter is the driven rear pair, 41/86mm; the front pair is 27/80mm.
- The bare DT-03 chassis is sold without tires, which is why this named kit is listed instead of the chassis.
- Unassembled kit with no battery; the motor is brushed, so KV and cell count do not apply.
Sources
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
