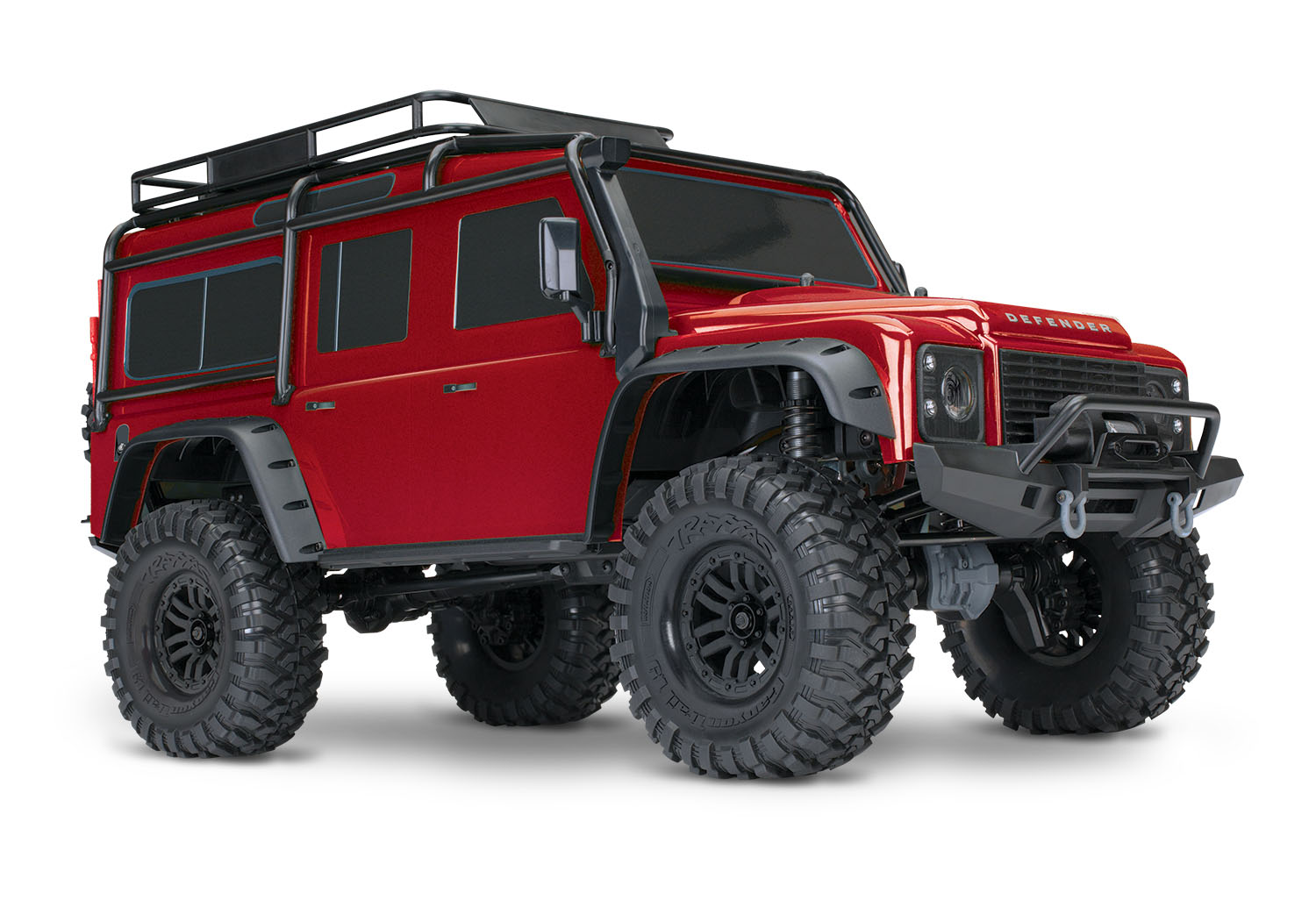

Traxxas TRX-4 Defender

Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not published means it exists but no source we could find prints it.

How these numbers were settled

Two-speed, resolved.

• The 82056-4 owner's manual prints two formulas (High Gear: '# Spur Gear Teeth / # Pinion Gear Teeth x 6.32 = Final Gear Ratio'; Low Gear: '... x 15.8 = Final Gear Ratio') and marks an 11-tooth pinion / 45-tooth spur as stock.
• Its two charts give 25.85 (high) and 64.64 (low) for 11/45, and the arithmetic reproduces both exactly: 45/11 x 6.32 = 25.85 and 45/11 x 15.8 = 64.64.
• High gear is used as the final drive because this is a top-speed calculator; low gear is 64.64:1.
• Two independent readings of the same manual page returned the same constants.
• Traxxas publishes no combined 'Gear Ratio (Internal)' row for the TRX-4, so there is no competing figure.
• Brushed Titan 550 21T motor, so KV and the cell count are left blank and no no-load speed check is possible.
• The tire diameter of 4.64 in (117.9 mm) is from Traxxas's TRX-4 comparison chart ('1.9" x 4.64" Canyon Trail'): 1.9 in is the wheel, 4.64 in the tire outside diameter.
• Portal axles.
• Traxxas publishes no portal reduction for the 1/10 TRX-4; 2.5559 is back-solved from its printed constants and comes out the same from either range (6.32 / (0.80 x 34/11) and 15.8 / (2.00 x 34/11)).
• The TRX-4M portal kit is printed as 2.56:1.

Sources

• 82056-4-110-trx-4-land-rove…traxxas.com (opens in a new tab)
• Traxxas-Trx4-82056-4manualslib.com (opens in a new tab)
• Manual (PDF)traxxas.com (opens in a new tab)

Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
