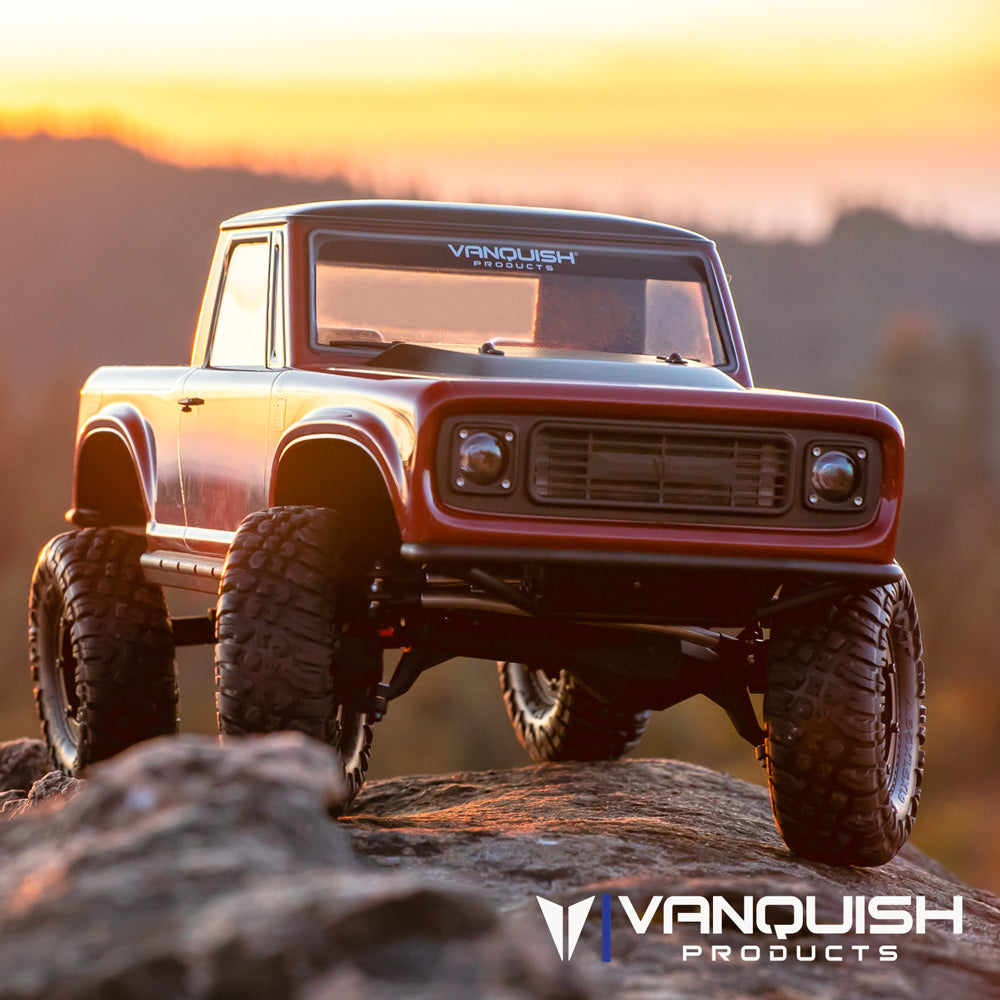

Vanquish Products VS4-10 Ultra Origin Halfcab
1/10 scale · VPS09006
- Final drive
- 61.70:1
- Tire
- 118mm
Open in Top Speedverified
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 15TStock | Stock |
| Spur | 56TStock | Stock |
| Transmission & axle | 16.53:1Stock | Stock |
| Spur ÷ pinion | 3.733:1Calculated | Calculated |
| Final drive | 61.70:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 118mmStock | Stock |
| Rollout | 6.0mm per motor turnCalculated | Calculated |
| Power | ||
| Motor | Not published | |
| Battery | Not published | |
| Performance | ||
| Theoretical top speed | Not published | |
| Vehicle | ||
| Part number | VPS09006 | |
| Scale | 1/10 | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not published means it exists but no source we could find prints it.
How these numbers were settled
Portal-axle kit.
- Vanquish publishes '5.25:1 Overall Axle Ratio, 1.4:1 Portal Box Ratio, Internal Trans Ratio: Front 2.95 / Rear 3.15, Overall Gear Ratio: Front 57.8 / Rear 61.7, Overdrive Percentage: 6.5%, 15T 32P Pinion, Included 56T 32P Spur'.
- Front and rear differ, so the rear total is used and the front is 57.8:1.
- Every published number reconciles: the ring and pinion is 5.25 / 1.4 = 3.75, and 3.75 hypoid x 1.4 portal = 5.25 axle; 5.25 x 3.15 = 16.54 rear after the spur; (56/15) x 16.54 = 61.7; on the front 5.25 x 2.95 = 15.49, (56/15) x 15.49 = 57.8.
- The transmission and axle ratio is stored as the rear 16.53, giving (56/15) x 16.53 = 61.71 against the published 61.7.
- Kit with no electronics, so KV and cell count are left blank.
- Wheels and VXT 4.65" tires are included, and Vanquish states the 4.65 in outside diameter, 118mm.
Sources
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
