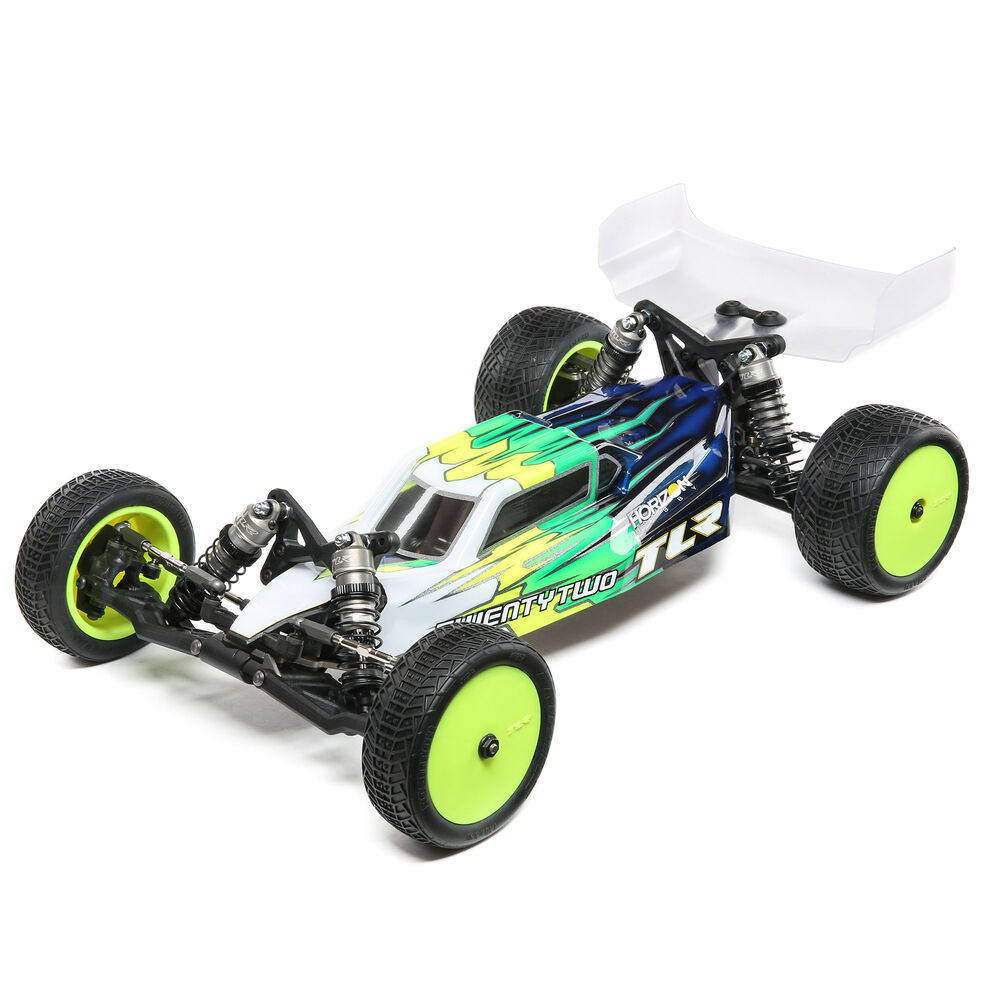

VehiclesTeam Losi Racing 22 4.0 SR
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | Not applicable | |
| Spur | 69TStock | Stock |
| Transmission & axle | 2.43:1Stock | Stock |
| Final drive | Not applicable | |
| Wheels & tires | ||
| Tire diameter | Not applicable | |
| Power | ||
| Motor | Not applicable | |
| Battery | Not applicable | |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Vehicle | ||
| Part number | TLR03014 | |
| Scale | 1/10 | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor.
How these numbers were settled
TLR prints 'Transmission Ratio' next to a worked example of the form spur over pinion times transmission ratio equals final drive, so that figure is exactly the after-spur value stored here.
- The kit ships without tires, without a pinion, without a motor and without a battery, all named in the manual or the needed-to-complete list. 69T direct-drive spur TLR332047.
- The manual's single published gearing is a 28T pinion at 5.98:1, and 69/28 x 2.43 = 5.988 reproduces it, but 5.98 is markedly taller than the 17.5T entries in the sibling charts and no second source confirms it.
Sources
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
