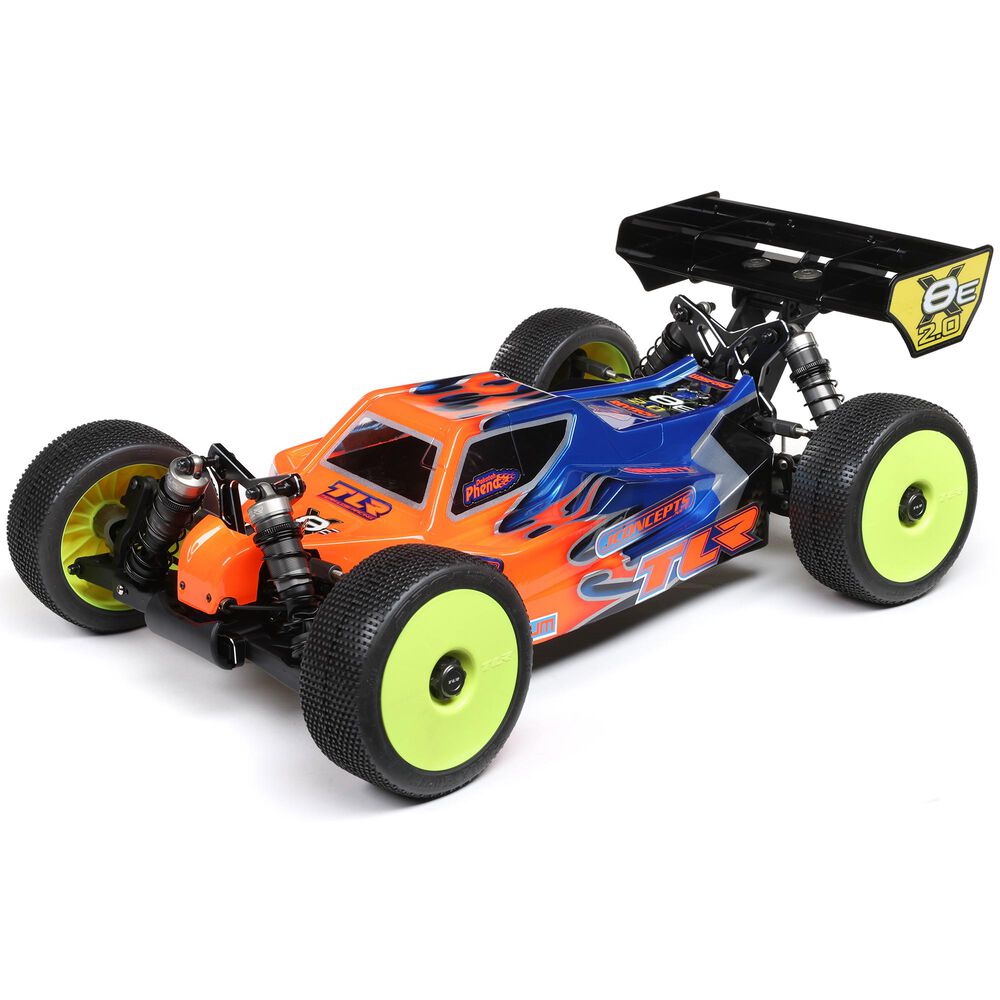

VehiclesTeam Losi Racing 8IGHT-X 2.0 (nitro)
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 13TStock | Stock |
| Spur | 47TStock | Stock |
| Transmission & axle | 3.31:1Stock | Stock |
| Final drive | 11.96:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | Not applicable | |
| Power | ||
| Motor | Not applicable | |
| Battery | Not applicable | |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Vehicle | ||
| Part number | TLR04012 | |
| Scale | 1/8 | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor.
How these numbers were settled
TLR04012 is a combo kit that builds either the nitro 8IGHT-X 2.0 or the electric 8IGHT-XE 2.0; this row is the nitro configuration.
- The manual states 'kit gearing ... is a 13 tooth clutch bell and a 47 tooth spur gear, 13/47'.
- The after-spur figure is the 43T ring against a 13T diff pinion, and 47/13 x 3.3077 = 11.96 is derived rather than published.
- Tires are not included.
Sources
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
