VehiclesTraxxas Sledge 6S

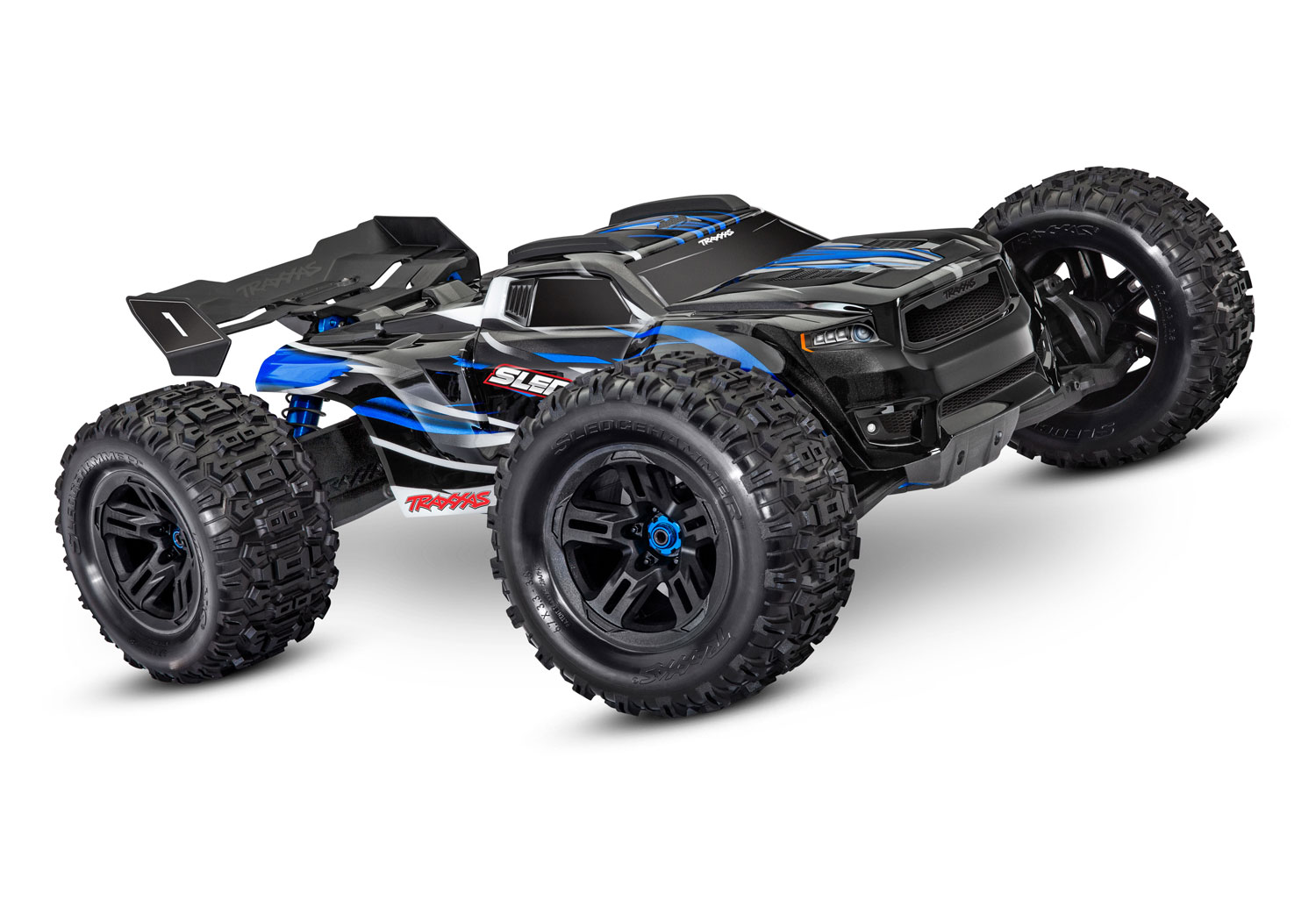

Traxxas Sledge 6S
1/8 scale · 95076-4
- Top speed
- 51mphcalculated
- Final drive
- 17.20:1
- Tire
- 170mm
Open in Top Speedsourced
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 13TStock | Stock |
| Spur | 52TStock | Stock |
| Transmission & axle | 4.30:1Stock | Stock |
| Spur ÷ pinion | 4.000:1Calculated | Calculated |
| Final drive | 17.20:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 170mmEstimated | Estimated |
| Rollout | 31.1mm per motor turnCalculated | Calculated |
| Power | ||
| Motor | 2000KVStock | Stock |
| Battery | Up to 6SLiPoStock | Stock |
| Performance | ||
| Theoretical top speed | 51.4mph on 6SCalculated | Calculated |
| Motor speed | 44,400rpm, no loadCalculated | Calculated |
| Vehicle | ||
| Part number | 95076-4 | |
| Scale | 1/8 | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. The top speed is kinematic: an ideal no-load RPM with no slip and no loss under load, so a real car is slower.
How these numbers were settled
Tire diameter is from the original catalog and is not manufacturer-sourced.
Sources
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
