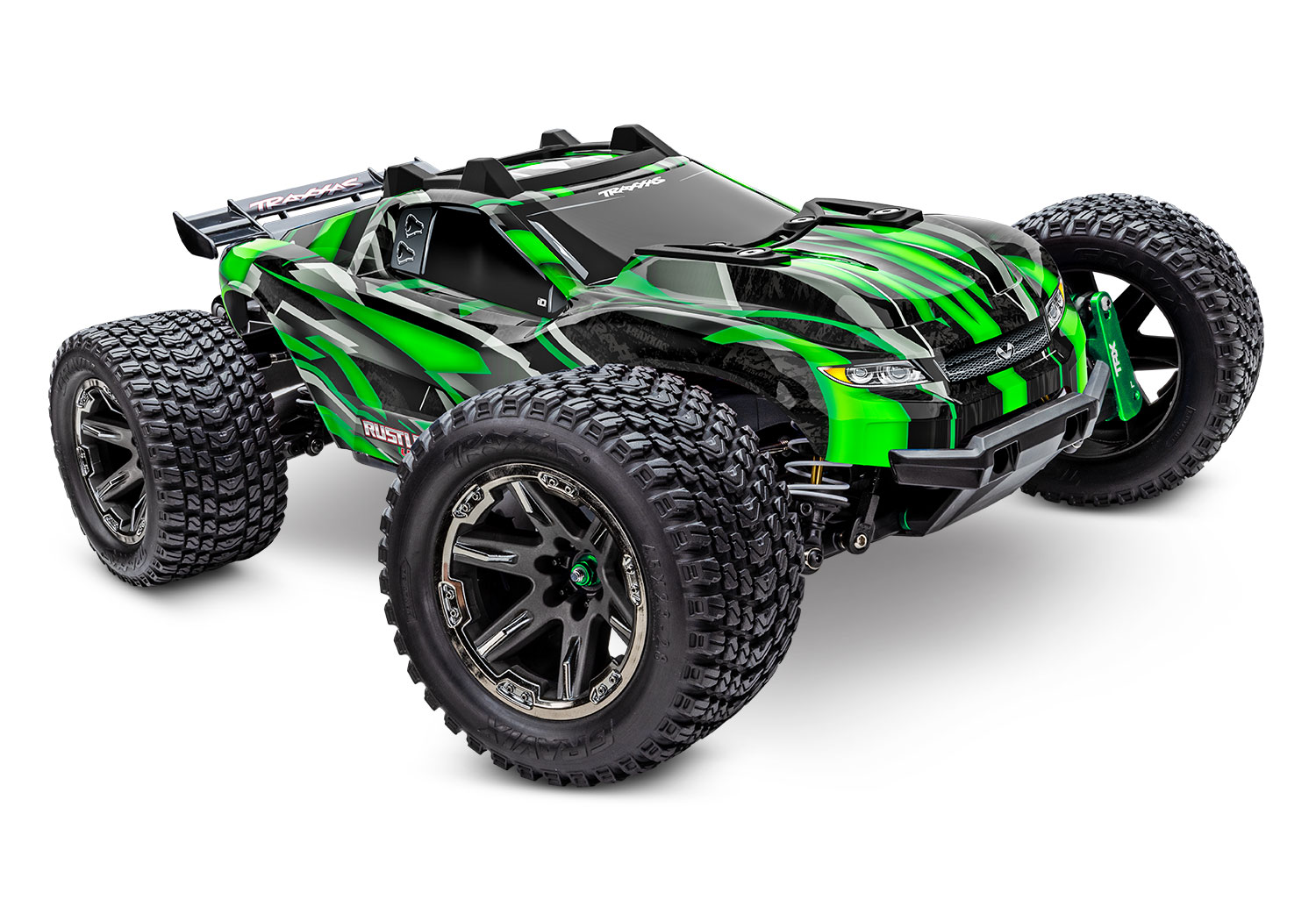

Traxxas Rustler 4X4 VXL Ultimate

Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. The top speed is kinematic: an ideal no-load RPM with no slip and no loss under load, so a real car is slower. The maker advertises 65 mph, which is their own claim on their own conditions.

How these numbers were settled

A separate SKU from the Rustler 4X4 VXL (67076-4): Ultimate trim, same driveline and gearing.

• The 67097-4 product page prints 'Gear Ratio (Internal): 13.97:1', and the Rustler 4X4 owner's manual prints '# Spur Gear Teeth x 2.85 / # Pinion Gear Teeth = Final Gear Ratio' with 11T/54T marked stock: 54/11 x 2.85 = 13.99, so the published 13.97 is the complete final drive and 2.85 is the ratio after the spur.
• A retailer spec sheet for this SKU independently states 'Overall Drive Ratio: 13.97:1', confirming the reading.
• Speed check: 3500 kV x 3S x 4.2 V / 13.97 on a 114 mm tire gives 42 mph no-load stock.
• Traxxas states the 65+ mph claim requires 3-cell LiPo and optional 20/54 gearing (final drive 7.70, about 76 mph no-load, so the claim is about 85% of theoretical); the advertised figure is not achievable on stock gearing.
• The tire diameter is estimated: Traxxas's page gives only the 2.8 in wheel size, and the 114 mm outside diameter comes from a retailer listing quoting the Gravix tire as 4.5" x 2.3" (114 mm x 58 mm).

Sources

• 67097-4-rustler-4x4-vxl-ult…traxxas.com (opens in a new tab)
• Manual (PDF)traxxas.com (opens in a new tab)
• traxxas-rustler-4x4-ultimat…eurorc.com (opens in a new tab)

Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
