VehiclesTraxxas Maxx V2 WideMaxx

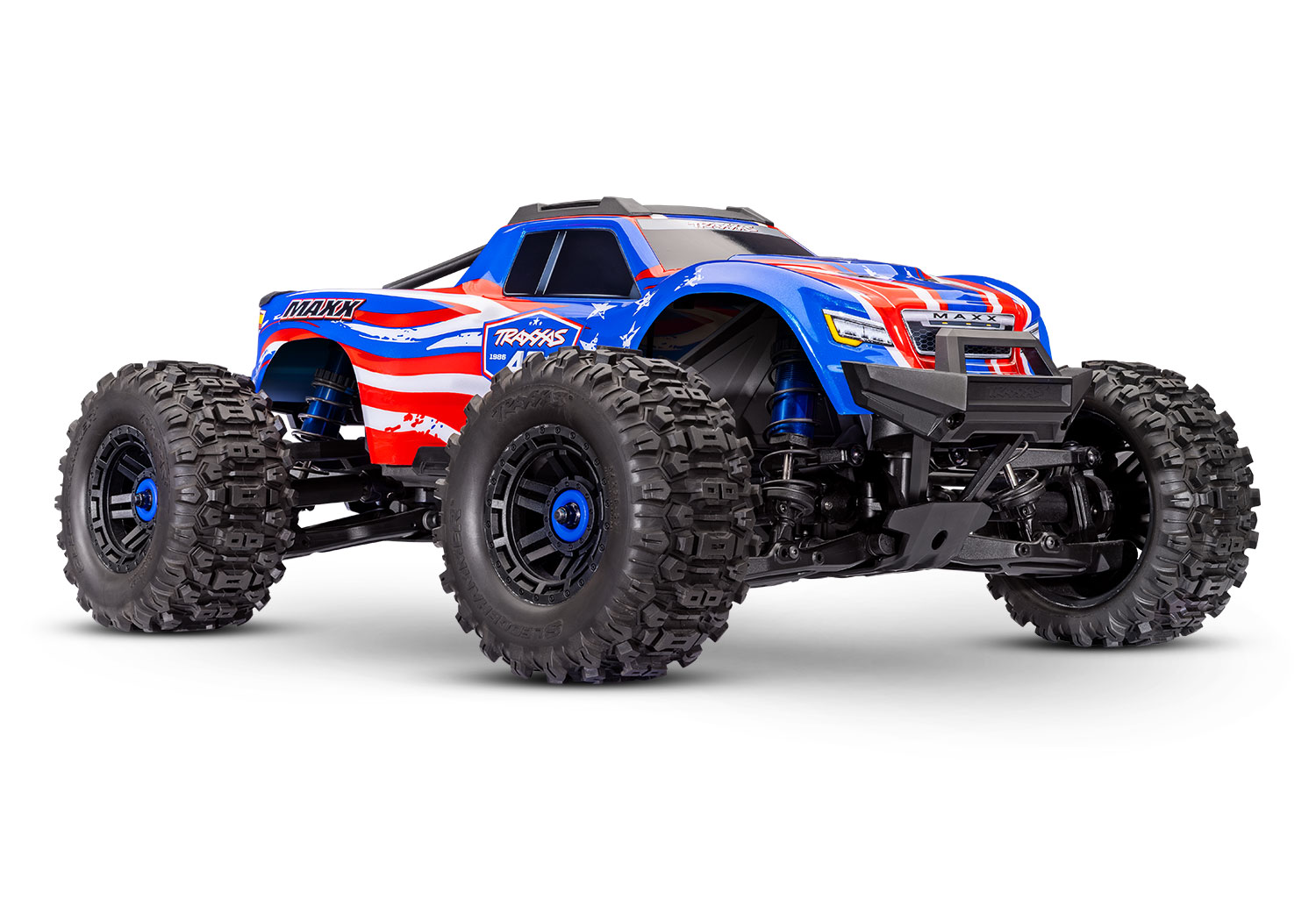

Traxxas Maxx V2 WideMaxx
1/10 scale · 89086-4
- Top speed
- 47mphcalculated
- Final drive
- 12.37:1
- Tire
- 140mm
Open in Top Speedverified
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 23TStock | Stock |
| Spur | 50TStock | Stock |
| Transmission & axle | 5.69:1Stock | Stock |
| Spur ÷ pinion | 2.174:1Calculated | Calculated |
| Final drive | 12.37:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 140mmEstimated | Estimated |
| Rollout | 35.6mm per motor turnCalculated | Calculated |
| Power | ||
| Motor | 2400KVStock | Stock |
| Battery | Up to 4SLiPoStock | Stock |
| Performance | ||
| Theoretical top speed | 47.1mph on 4SCalculated | Calculated |
| Motor speed | 35,520rpm, no loadCalculated | Calculated |
| Vehicle | ||
| Part number | 89086-4 | |
| Scale | 1/10 | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. The top speed is kinematic: an ideal no-load RPM with no slip and no loss under load, so a real car is slower.
How these numbers were settled
Tire diameter is from the original catalog and is not manufacturer-sourced.
Sources
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
