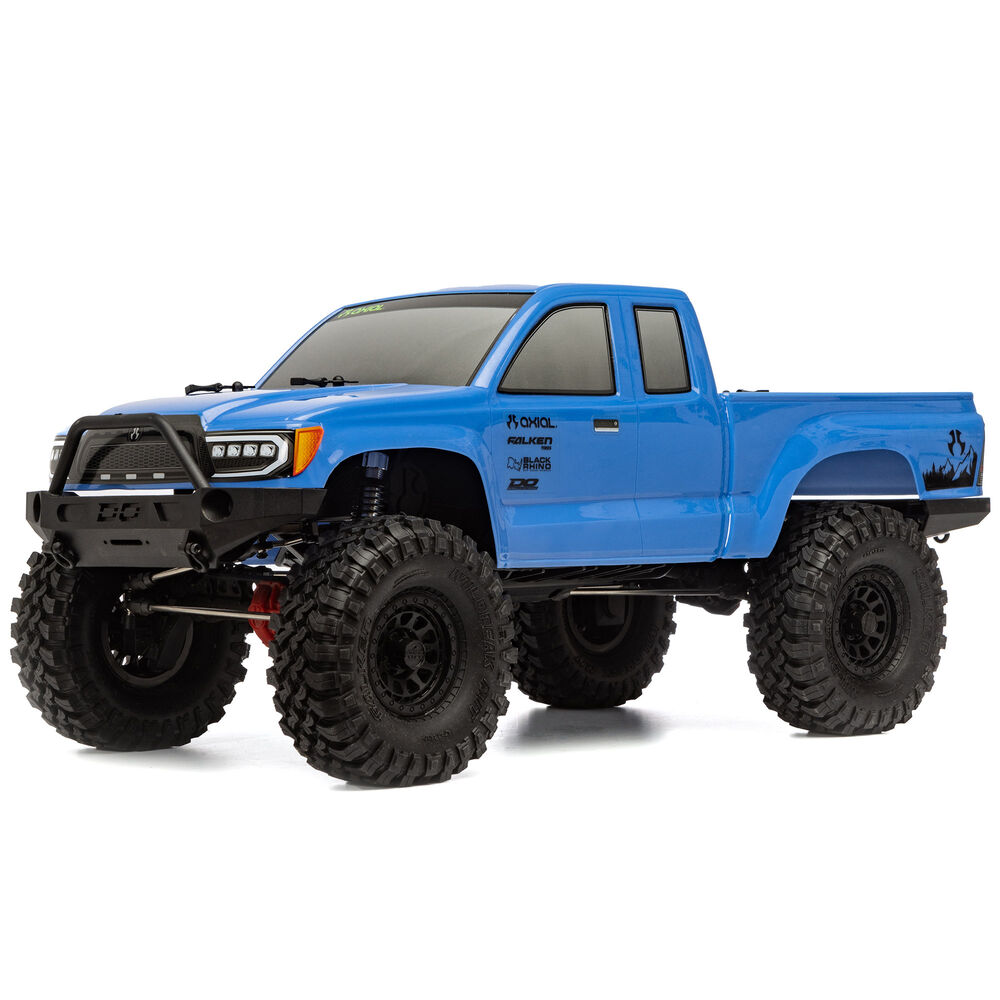

VehiclesAxial SCX10 III Base Camp
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 14TStock | Stock |
| Spur | 56TStock | Stock |
| Transmission & axle | 11.80:1Stock | Stock |
| Spur ÷ pinion | 4.000:1Calculated | Calculated |
| Final drive | 47.20:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 119.4mmStock | Stock |
| Rollout | 7.9mm per motor turnCalculated | Calculated |
| Power | ||
| Motor | Not published | |
| Battery | Up to 3SLiPoStock | Stock |
| Performance | ||
| Theoretical top speed | Not published | |
| Vehicle | ||
| Part number | AXI03027 | |
| Scale | 1/10 | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not published means it exists but no source we could find prints it.
How these numbers were settled
AR45P portal axles.
- Portal gear set AXI232007 is 23T/12T = 1.91667:1 (Axial manual parts list).
- The stored internal ratio already includes it.
Sources
- AXI03027horizonhobby.com (opens in a new tab)
- Manual (PDF)horizonhobby.com (opens in a new tab)
- AXI43014horizonhobby.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
