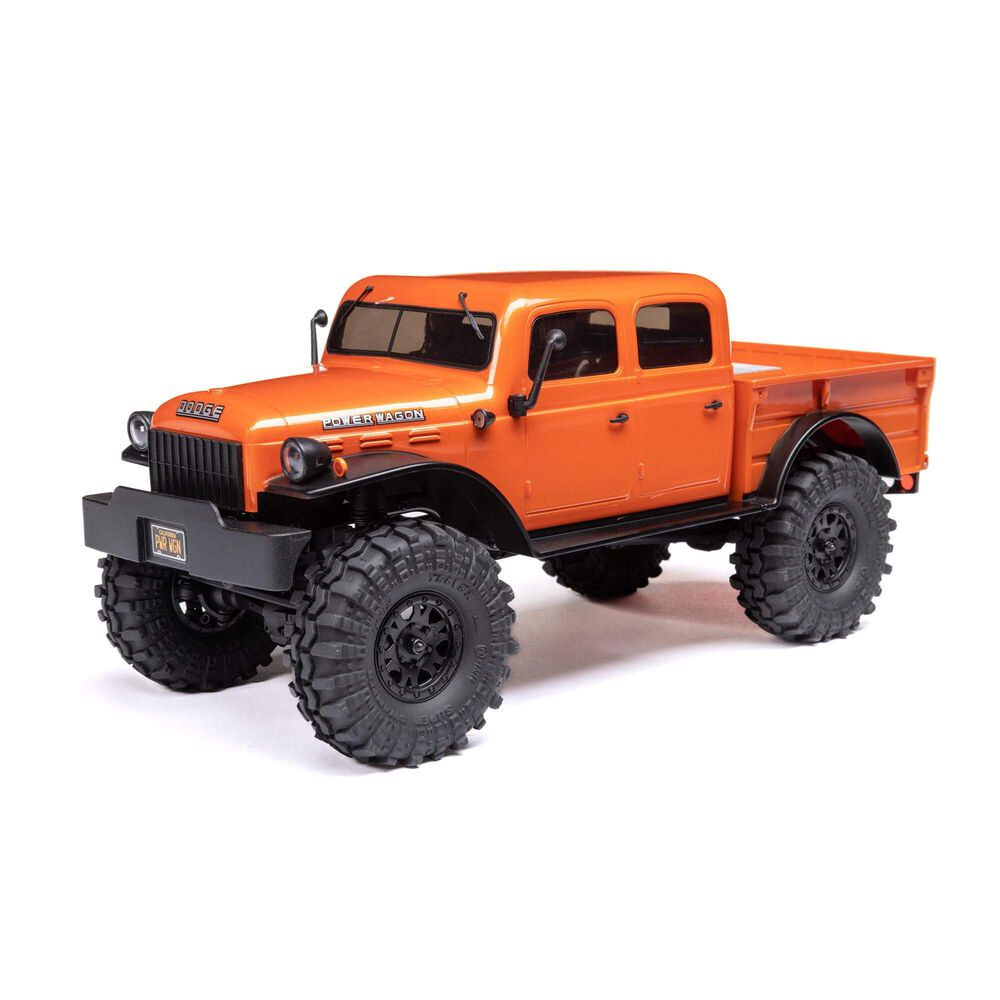

VehiclesAxial SCX24 1940 Dodge Power Wagon
Axial SCX24 1940 Dodge Power Wagon
1/24 scale · AXI00007
- Final drive
- 118.08:1
- Tire
- 57mm
Open in Top Speedsourced
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 10TStock | Stock |
| Spur | 55TStock | Stock |
| Transmission & axle | 21.47:1Stock | Stock |
| Spur ÷ pinion | 5.500:1Calculated | Calculated |
| Final drive | 118.08:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 57mmEstimated | Estimated |
| Rollout | 1.5mm per motor turnCalculated | Calculated |
| Power | ||
| Motor | Not published | |
| Battery | Up to 2SLiPoStock | Stock |
| Performance | ||
| Theoretical top speed | Not published | |
| Vehicle | ||
| Part number | AXI00007 | |
| Scale | 1/24 | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not published means it exists but no source we could find prints it.
How these numbers were settled
Axial's spec block prints the axle as "Worm Gear 16T/4T", which reads as 4:1 and is wrong: the stock worm is 2-start on a 16-tooth wheel, so 8:1.
- Internal here is the whole chain after the pinion, 2.684 transmission x 8 axle.
- Brushed 030, so no KV.
- Axial publishes no tire diameter for this model; 57 mm is Pro-Line's own figure for the fitted TSL Super Swamper.
Sources
- AXI00007axialadventure.com (opens in a new tab)
- mofo-rc-bulletproof-diff-ax…moforc.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
