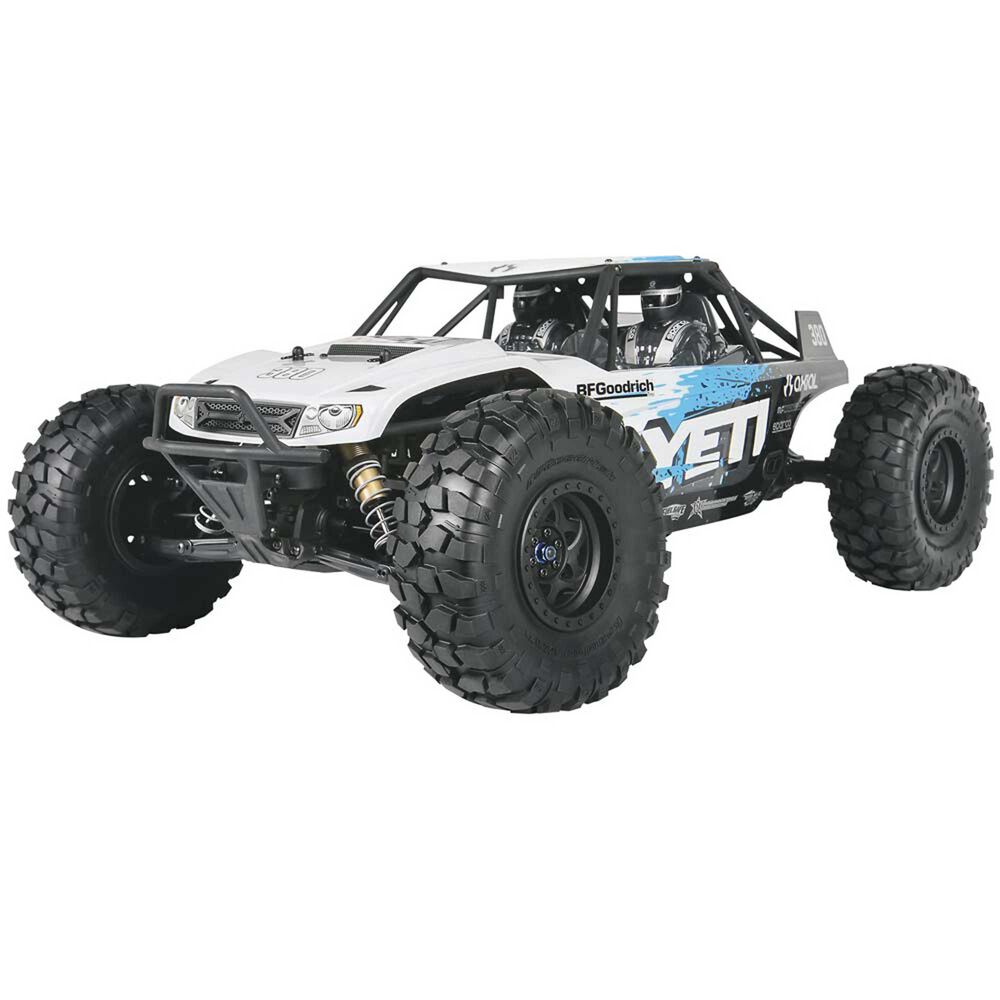

VehiclesAxial Yeti 4WD Rock Racer
Axial Yeti 4WD Rock Racer
1/10 scale · AXID9026
- Top speed
- 23mphcalculated
- Final drive
- 22.67:1
- Tire
- 130mm
Open in Top Speedverified
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 16TStock | Stock |
| Spur | 64TStock | Stock |
| Transmission & axle | 5.67:1Stock | Stock |
| Spur ÷ pinion | 4.000:1Calculated | Calculated |
| Final drive | 22.67:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 130mmStock | Stock |
| Rollout | 18.0mm per motor turnCalculated | Calculated |
| Power | ||
| Motor | 3150KVStock | Stock |
| Battery | Up to 3SLiPoStock | Stock |
| Performance | ||
| Theoretical top speed | 23.5mph on 3SCalculated | Calculated |
| Motor speed | 34,965rpm, no loadCalculated | Calculated |
| Vehicle | ||
| Part number | AXID9026 | |
| Scale | 1/10 | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. The top speed is kinematic: an ideal no-load RPM with no slip and no loss under load, so a real car is slower.
How these numbers were settled
The final drive is from Axial's own transmission guide, not the vehicle manual; the stock tooth counts, motor, tire diameter and cell count are independently confirmed on Axial's product page.
- Legacy Axial part number for the same truck: AX90026; kit: AXIC9025.
- The 5.667 transmission and axle ratio is derived, back-solved from the guide's chart constant.
Sources
- axi-blog-archive-axial-tran…axialadventure.com (opens in a new tab)
- AXID9026axialadventure.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
