VehiclesRedcat Racing Everest Gen7 Pro
Redcat Racing

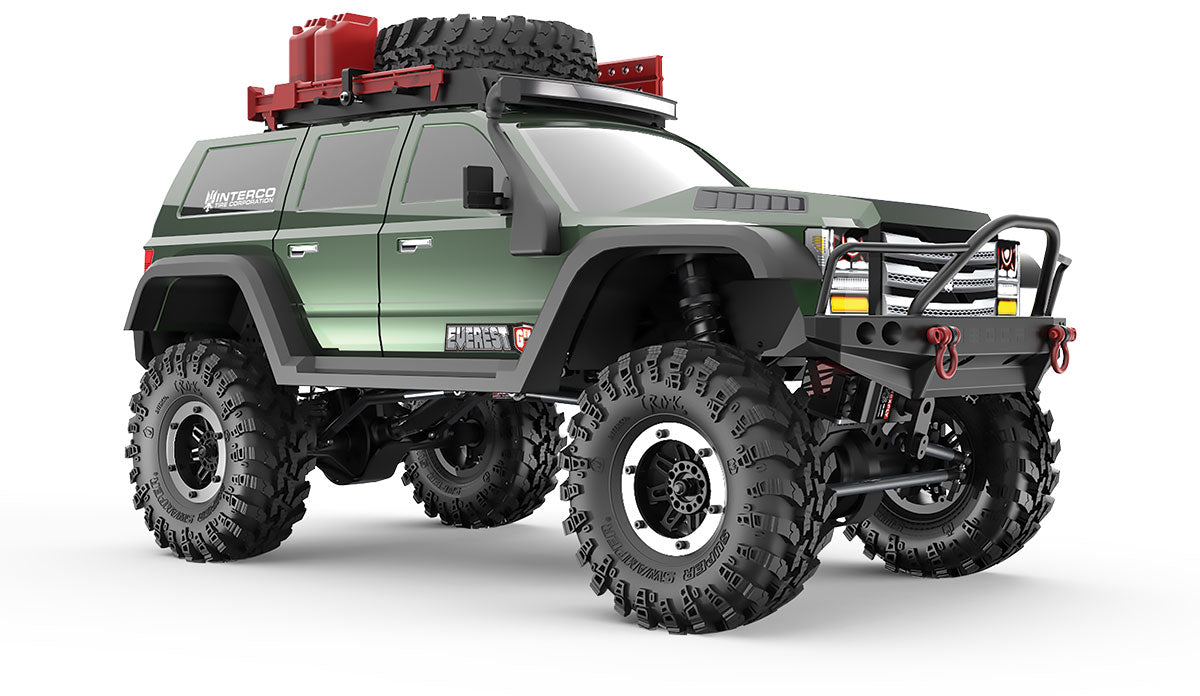

Redcat Racing Everest Gen7 Pro
1/10 scale · scale crawler · RER09587
- Tire
- 115mm
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 18TStock | Stock |
| Spur | 87TStock | Stock |
| Transmission & axle | Not published | |
| Final drive | Not published | |
| Wheels & tires | ||
| Tire diameter | 115mmStock | Stock |
| Power | ||
| Motor | Not applicable | |
| Battery | Up to 3SLiPoStock | Stock |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Vehicle | ||
| Part number | RER09587 | |
| Scale | 1/10 | |
| Class | Scale crawler | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.
How these numbers were settled
Tooth counts come from Redcat's parts catalogue as reproduced by two independent retailers: RER18128 'Everest Gen7 Main Gear (87T)' (White Rose lists the same gear as 87T 48P under the alternate number RER09841) and RER60161, described as 'this is the replacement 18 tooth pinion used on the Everest Gen7 truck'.
- The spur reduction is 87/18 = 4.833.
- Redcat publishes no transmission, diff or total ratio for the Gen7 and the manual's exploded view could not be obtained (Redcat hosts manuals on Google Drive), so the transmission and axle ratio and the final drive are left blank.
- Gearing is 48P here, not the 32P used on the Gen8/Gen9.
- The motor is a 550 brushed can, no KV.
- The cell count of 3 is inferred from the stock ESC being the Hexfly HX-1040 Crawler (sellers list RER09886 as the HX-1040 Crawler for the Gen7, and Redcat's own parts shop files the Gen7 ESC under the slug everest-gen7-HX-1040-CRAWLER); that ESC is rated 2-3S LiPo / 5-9 cell NiMH.
- That inference is the weakest load-bearing figure, hence graded sourced rather than verified.
- Part number #9587 is from Big Squid's review.
Sources
- everest-gen7-proredcatracing.com (opens in a new tab)
- p711766hobbytown.com (opens in a new tab)
- p711778hobbytown.com (opens in a new tab)
- readcat-racing-18128-rer098…whiterosehobbies.com (opens in a new tab)
- hexfly-hx-1040-crawler-escbrshobbies.com (opens in a new tab)
- redcat-racing-everest-gen7-…bigsquidrc.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
