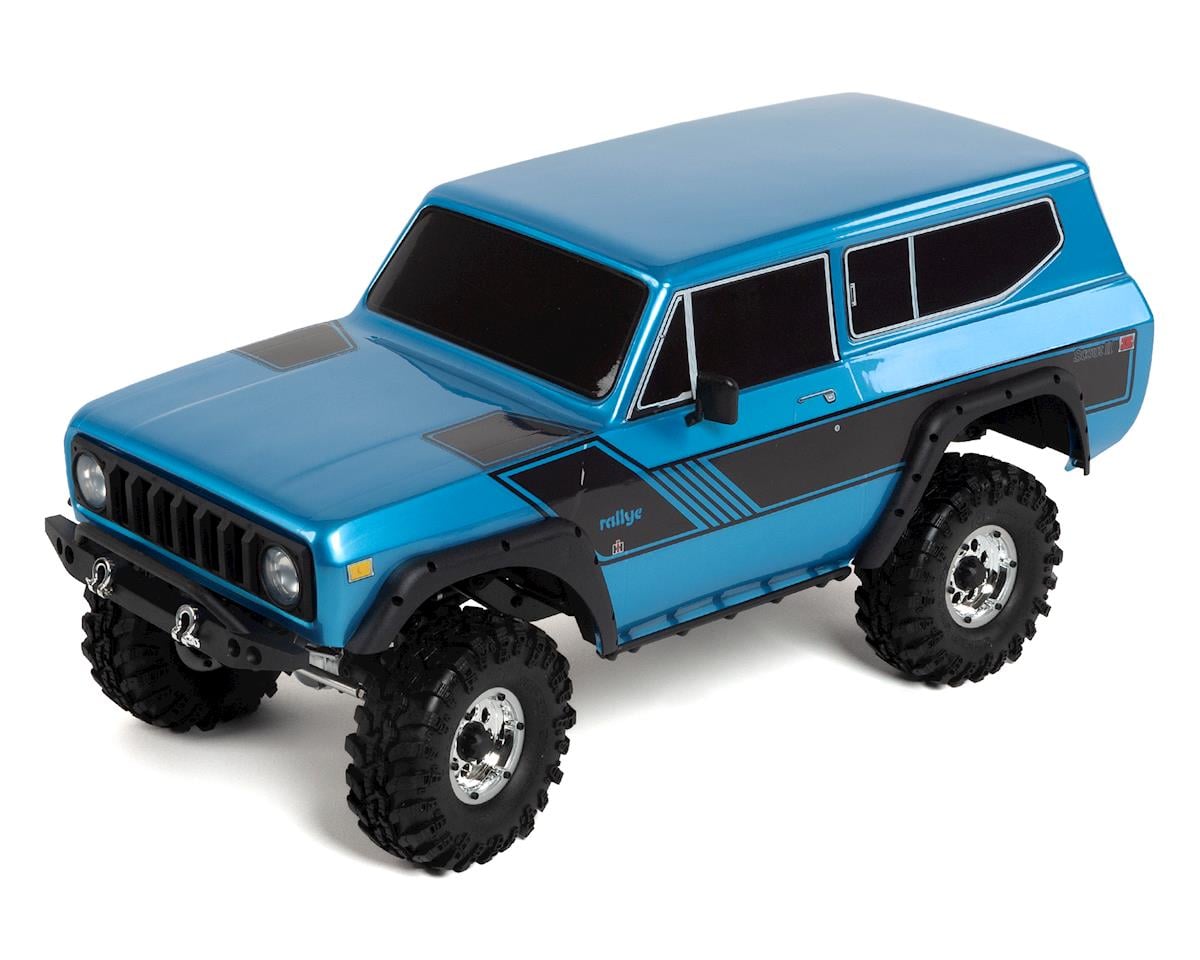

Redcat Racing Gen8 International Scout II

Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.

How these numbers were settled

The original (V1) Gen8 Scout II, the 2018 car that the V2 replaced.

• Redcat publishes the same range as on the V2, 'pinion gears from 9 to 23 tooth to create gear ratios from 28.12 to 71.85', and that range pins the ratio after the spur against the 45T spur exactly: 45/9 x 14.37 = 71.85 and 45/23 x 14.37 = 28.12.
• The 45T spur is confirmed by Redcat's parts page for RER11358, a 45T .8-module spur whose fitment list names GEN8 SCOUT II, Gen8 V2, GEN 9, WENDIGO, WENDIGO KIT and MARKSMAN.
• The V2's 17T stock pinion is deliberately not carried across: Redcat never states the V1's stock fitment, and a 17T can is not the same thing as a 17T pinion, so the pinion and final drive are left blank.
• The motor is a 17-turn RC550 brushed, so no KV.
• The 3S figure comes from the Hexfly HX-1040 crawler ESC (2-3S LiPo / 5-9 cell NiMH), which BRS Hobbies states comes stock on the Gen8 Scout II.

Sources

• p865257hobbytown.com (opens in a new tab)
• rer11358redcatracing.com (opens in a new tab)
• redcat-gen8-v2-scout-ii-1-1…redcatracing.com (opens in a new tab)
• hexfly-hx-1040-crawler-escbrshobbies.com (opens in a new tab)

Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
