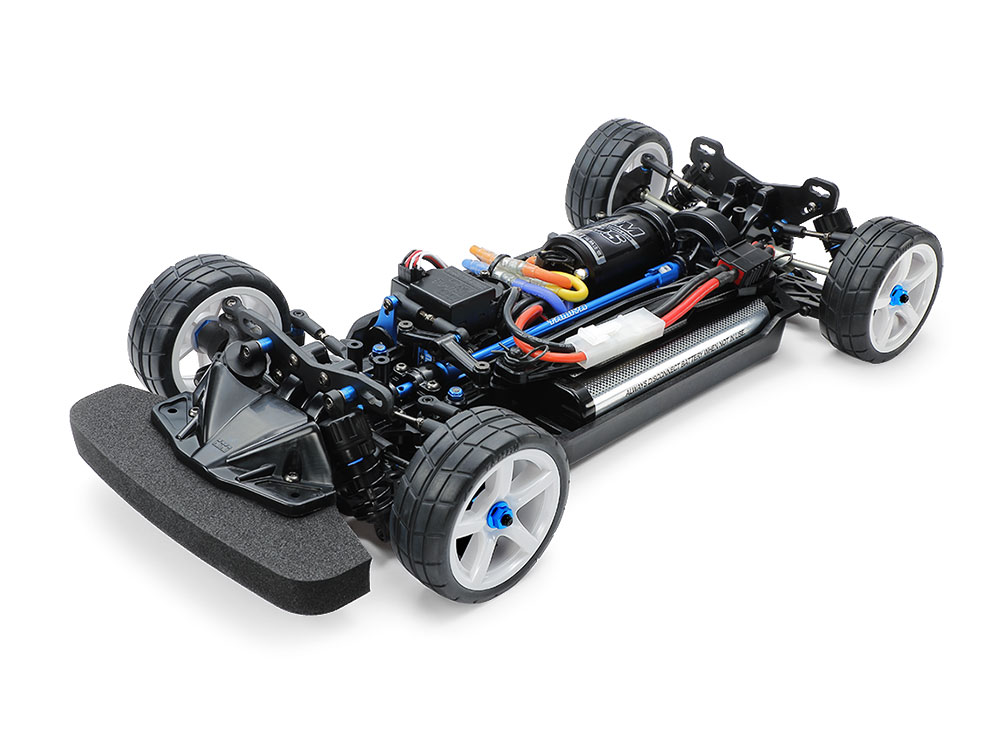

VehiclesTamiya TT-02 Type-SRX Chassis Kit
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 27TStock | Stock |
| Spur | 68TStock | Stock |
| Transmission & axle | 2.60:1Stock | Stock |
| Final drive | 6.55:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | Not applicable | |
| Power | ||
| Motor | Not applicable | |
| Battery | Up to 2SLiPoStock | Stock |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Vehicle | ||
| Part number | 58720 | |
| Scale | 1/10 | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor.
How these numbers were settled
Tamiya's manual (58720) shows step 10 installing a stock 27T pinion (MA14) against a fixed 68T spur (MA26), and the gear-ratio table on page 19 lists 27T/68T = 6.55:1 (row K).
- Tamiya prints no separate transmission and axle ratio, so it is derived: 68/27 x ratio = 6.55 gives 2.601, matching the TT-02's documented 2.6:1 driveline constant.
- The TT-02 Type-S manual's table gives the same result independently (70T spur, 22T stock pinion, 8.27:1 published: 70/22 x ratio = 8.27 gives 2.60).
- Two manual tables agreeing on 2.6 is why these figures are treated as verified.
- Page 2 states the kit ships with no motor and no tires or tire inserts, so KV and the tire diameter do not apply (rather than being unknown).
- The same page calls for a '7.2-7.4volt battery', hence a cell count of 2.
- The SRX differs from the TT-02 Type-S (58600): a 68T spur instead of 70T, an 18-27T pinion range instead of 16-25T, and a front direct coupling (spool) in place of a differential, giving 6.55 rather than 8.27.
- The TT-02 Type-SR (47439) is not listed: its manual shows the same 70T spur and 16-25T pinion table as the Type-S and ships with no pinion or motor ('Choose a pinion gear referring to page 20'), so it has no stock spec from the maker and no real gearing difference from the Type-S.
Sources
- rc-tt-02-type-srx-chassis-k…tamiyausa.com (opens in a new tab)
- Manual (PDF)d7z22c0gz59ng.cloudfront.net (opens in a new tab)
- Manual (PDF)d7z22c0gz59ng.cloudfront.net (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
