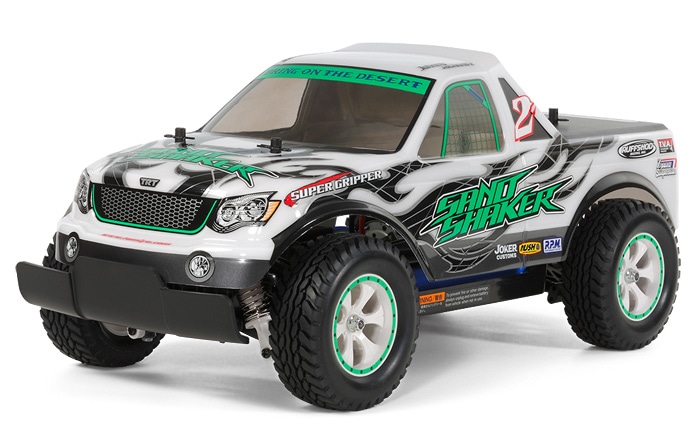

VehiclesTamiya TT-02T Sand Shaker
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 17TStock | Stock |
| Spur | 70TStock | Stock |
| Transmission & axle | 2.60:1Stock | Stock |
| Spur ÷ pinion | 4.118:1Calculated | Calculated |
| Final drive | 10.71:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 90mmStock | Stock |
| Rollout | 26.4mm per motor turnCalculated | Calculated |
| Power | ||
| Motor | Not published | |
| Battery | Not published | |
| Performance | ||
| Theoretical top speed | Not published | |
| Vehicle | ||
| Part number | 58608 | |
| Scale | 1/10 | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not published means it exists but no source we could find prints it.
How these numbers were settled
TT-02T is the truck version of the TT-02.
- Tamiya's Japanese spec block prints 'ギヤ比=キット標準10.71:1' (kit-standard 10.71:1), the complete motor-to-wheel ratio, identical to the TT-02B; with the kit-standard 70T spur and the 2.6 after-spur constant that is the 17T pinion, and (70/17) x 2.6 = 10.706.
- The included motor is a brushed Torque-Tuned, so there is no kV or cell rating; the ESC is listed as ESC仕様 (sold separately) in Japan.
- Tires are 33/90mm front and rear.
Sources
- indextamiya.com (opens in a new tab)
- indextamiya.com (opens in a new tab)
- indextamiya.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
