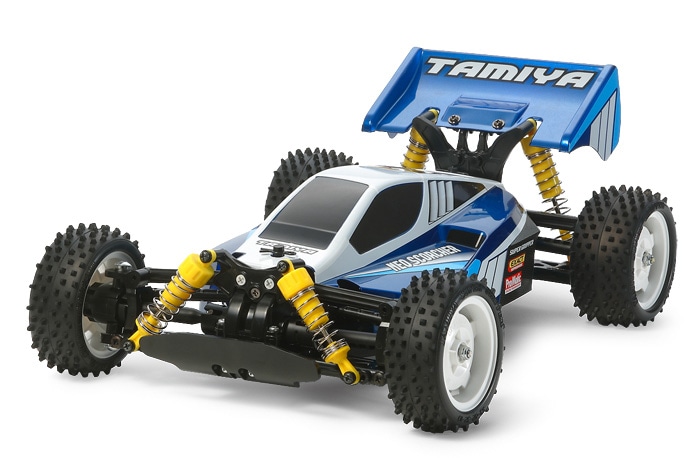

VehiclesTamiya TT-02B Neo Scorcher
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 17TStock | Stock |
| Spur | 70TStock | Stock |
| Transmission & axle | 2.60:1Stock | Stock |
| Spur ÷ pinion | 4.118:1Calculated | Calculated |
| Final drive | 10.71:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 82mmStock | Stock |
| Rollout | 24.1mm per motor turnCalculated | Calculated |
| Power | ||
| Motor | Not published | |
| Battery | Not published | |
| Performance | ||
| Theoretical top speed | Not published | |
| Vehicle | ||
| Part number | 58568 | |
| Scale | 1/10 | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not published means it exists but no source we could find prints it.
How these numbers were settled
TT-02B is the buggy version of the TT-02 and shares its transmission.
- Tamiya prints 'Gear Ratio: 10.71:1 (using kit-included pinion gear)', the complete motor-to-wheel ratio; with the kit-standard 70T spur and the 2.6 after-spur constant, that is the 17T pinion and (70/17) x 2.6 = 10.706, within 0.04%.
- Brushed Type 540 motor included, ESC sold separately, so no kV or cell rating.
- Tire diameter is the driven rear pair, 41/82mm; the front pair is 32/82mm, the same 82mm outside diameter.
Sources
- indextamiya.com (opens in a new tab)
- indextamiya.com (opens in a new tab)
- indextamiya.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
